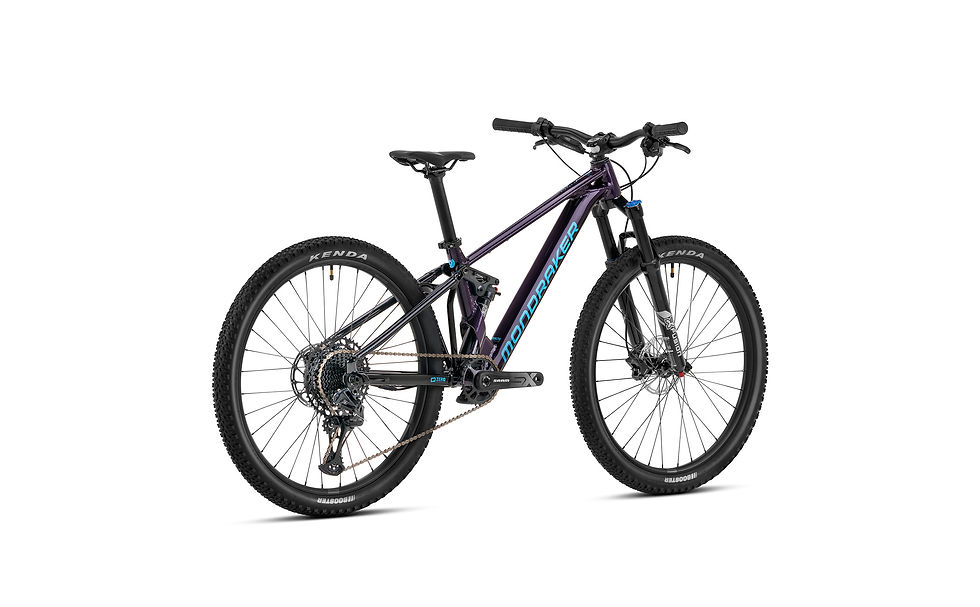

Mondraker F-Play 26 2023

Mondraker F-Play 26 2023

£2,945.00Price
The F-PLAY 26 comes with just as much Mondraker DNA built in as any of our adult’s bikes. With its STEALTH EVO aluminum frame and its tailor made ZERO SUSPENSION SYSTEM you'll have a hard time keeping up with any kid who takes it for spin. With 120mm of suspension travel front and rear, your kids'll be the riding buddies you dreamed of thanks to a bike that gives them a little help when it counts. They’ll be the ones getting you out of bed first thing in the morning to go riding. Who doesn't want that? Enjoying our sport with our kids is beyond priceless.

  • Frame
    F-Play 26 6061 Alloy Stealth evo, hydroformed tubing, Zero Suspension System, 120mm travel, one piece bolt-on upper link, integrated internal non-removable battery, Tapered head tube, HHG internal cable routing, BSA bottom bracket, QR 9mm rear axle, 1x drivetrain compatible

    Sizes
    One size: 350mm
  • Rear shock
    X-Fusion 02PRO R, 210x55mm. Settings: low-speed rebound, air preload. 45x8mm top and bottom bushings

    Shock settings
    A-Tune light compression
  • Fork
    X-Fusion Velvet RL 26, 120mm, air spring, tapered steerer tube, 9x100mm axle, 32mm aluminum stanchions, 41mm offset. Settings: lockout, rebound, air preload

    Headset
    Onoff Saturn tapered for 1-1/8” to 1-1/2” head tube, ACB sealed bearings, top 41x30.2x7x45ºx45º, bottom 51.9x40x8x45ºx45º
  • Stem
    Onoff Sulfur FG 30mm 0º, 6061 forged alloy, 31.8mm barbore

    Handlebar
    MDK XC 1.0, 6061 alloy, rise: 25mm, width: 680mm, 9º backsweep, 5º upsweep, 31.8mm barbore
  • Grips
    Onoff Twin, 1lock-on

    Seatpost
    MDK XC 0-R, 6061 T6 Alloy, diameter 31.6mm, length 350mm
  • Saddle
    SDG Fly JR

    Front brake
    Sram Level, 2 piece caliper, Centerline 160mm IS 6 bolts one-piece rotor, steel-backed organic pad
  • Rear brake
    Sram Level, 2 piece caliper, Centerline 160mm IS 6 bolts one-piece rotor, steel-backed organic pad

    Brake lever
    Sram Level, tooled reach adjust, lever pivot bushings
  • Rims
    MDK-XP1 26 TLR, 25mm internal width, tubeless ready, 32 spokes

    Spokes
    CN round stainless steel
  • Front hub
    Formula DC20LW, 9x100mm, cup & cone ball bearings, IS 6 bolts

    Rear hub
    Mahle-Ebikemotion X-35
  • Front tire
    Kenda Booster 26x2.4 single compound 30TPI, wire bead

    Rear tire
    Kenda Booster 26x2.4 single compound 30TPI, wire bead
  • Crankset
    Sram SX Eagle, DUB axle, Direct mount chain ring, 155mm

    Rings
    30T, steel, X-Sync
  • Bottom bracket
    Sram DUB BSA, sealed bearings, 73mm

    Chain
    Sram SX Eagle, 12s, Powerlock
  • Rear derrailleur
    Sram SX Eagle, Type 3 roller bearing clutch, cage lock, long cage, 1x12s, X-actuation 1:1

    Shift levers
    Sram Trigger SX Eagle, 12s, X-Actuation 1:1
  • Casette
    Sram XG-1230, 11-50T, 12s

    Derailleur hanger
    Mondraker M073
  • Weight
    16,9 kg

    Display
    Mahle-Ebikemotion
  • Motor
    Mahle-Ebikemotion X-35

    Battery
    Mahle-Ebikemotion Internal 250Wh
